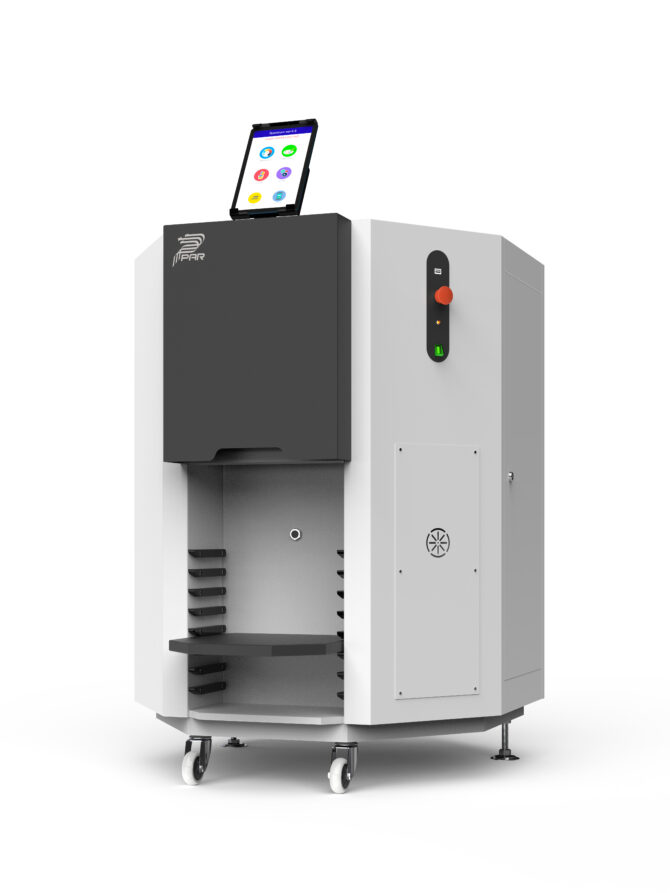

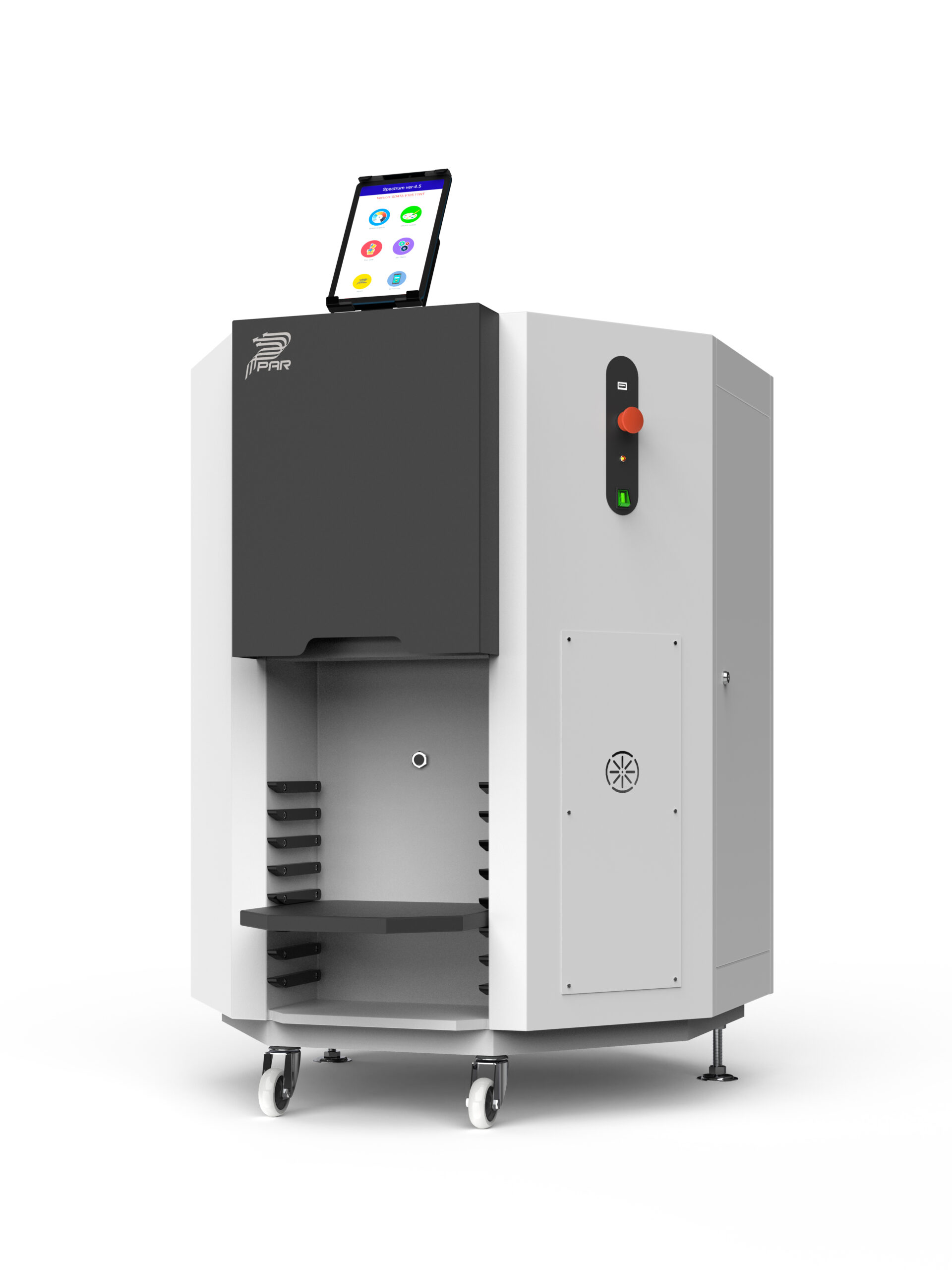

Aquret Fusion SQXS

	Product: Aquret Fusion SQXS
Machine Type	32 Circuit Automatic Sequential
Minimum Dispensing	0.07 ml
Colorant Compatibility	Decorative (Water Based, Universal) and Solvent

Configuration	Upto 32 Canisters
Material	Polypropylene (PP) and Polyoxymethylene (POM)
Capacity	1.5l / 2.5l
Orientation	16 Canisters x 1.5l (Solvent), 12 Canisters x 1.5l (Decorative) and 4 Canisters x 2.5l (Decorative)

Pump Type	Piston Pump
Pump Capacity	50ml
Pump Material	Stainless Steel
Flow Rate	350ml/min
Minimum Dispense	0.07ml
Valves	FRKN Valves
Seal Material	Silicone Rubber \| Teflon (PTFE) \| Perfluoroelastomer (FFKM)
Calibration	Copied Calibration

Compatibility	Windows OS(Spectrum) and Android(SpectrumTint)
Database	Spectrum Database, updates through cloud based backend
History	History Capture through cloud based backend

Can Shelf	Manually Repositionable Can Tray
Max. Can Height	410mm
Max. Can Diameter	330mm
Can Sensor	Controlled Dispensing Through Optical Sensor \| Integrated Can Laser Locator

Net HWD	1045 x 835 x 965mm
Packaging HWD
Net Weight	192kg
Gross Weight	240kg

Max. Power	80W
Input Power Supply	230v AC, Single Phase, 50/60 Hz



* High Level of accuracy and repeatability in dispensing
* Heavy Duty Robust Metal body
* Sequential dispensing I piston pump technology
* Combination of solvent based and decorative based colorant dispenser
* Zero purge complete shut off FRKN® valve (optional)
* Bi-directional turntable movement
* No Pipes – No Dripping of Colorants
* Single Control Board
* Wi-Fi Enabled dispensing I Mobile + Tablet based operation
* Powerful backend: Online Database Updation through Cloud Computing – Get New Shades Online!
* Remote History Backup: View History files of any dealer anywhere!



Specifications

* 32 Circuit Automatic Sequential
* Decorative (Water Based, Universal) and Solvent
* 16 Canisters x 1.5l (Solvent), 12 Canisters x 1.5l (Decorative) and 4 Canisters x 2.5l (Decorative)
* 350ml/min
* FRKN Valves
